Brand Name : SiTime
Model Number : SIT8008AC-13-33E-50.000000
Certification : CE, GCF, ROHS
Place of Origin : China
MOQ : 1
Price : Negotiable
Payment Terms : T/T, Western Union,
Supply Ability : 1000pcs per month
Delivery Time : 3-5 working days after received the payment
Packaging Details : Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Packaging Type : Reel Tray Tube Tape Bag
Operating Temperature : -40°C ~ 125°C
Package / Case : WSON-8
Mounting Type : SMD/SMT
Manufacturing Date Code : 2024+
Function : Step-Down
Features
Any frequency between 1 MHz and 110 MHz accurate to 6 decimal places
Operating temperature from -40°C to 85°C. Refer to SiT8918 and SiT8920 for high temperature options
Excellent total frequency stability as low as ±20 PPM
Low power consumption of 3.6 mA typical
Programmable drive strength for improved jitter, system EMI reduction, or driving large capacitive loads
LVCMOS/HCMOS compatible output
Industry-standard packages: 2.0 x 1.6, 2.5 x 2.0, 3.2 x 2.5, 5.0 x 3.2, 7.0 x 5.0 mm x mm
Instant samples with Time Machine II and field programmable oscillators
Pb-free, RoHS and REACH compliant
Applications
Ideal for DSC, DVC, DVR, IP CAM, Tablets, e-Books, SSD
Ideal for high-speed serial protocols such as: USB, SATA, SAS,
Information
Category | | |
Mfr | | |
Series | | |
Packaging | Strip | |
Part Status | Active | |
Base Resonator | | |
Type | | |
Frequency | 50 MHz | |
Function | Enable/Disable | |
Output | HCMOS, LVCMOS | |
Voltage - Supply | 3.3V | |
Frequency Stability | ±50ppm | |
Absolute Pull Range (APR) | - | |
Operating Temperature | -20°C ~ 70°C | |
Spread Spectrum Bandwidth | - | |
Current - Supply (Max) | 4.5mA | |
Ratings | - | |
Mounting Type | Surface Mount | |
Package / Case | 4-SMD, No Lead | |
Supplier Device Package | 4-PQFN (2.5x2) | |
Size / Dimension | 0.098" L x 0.079" W (2.50mm x 2.00mm) | |
Height - Seated (Max) | 0.031" (0.80mm) | |
Current - Supply (Disable) (Max) | 4mA |

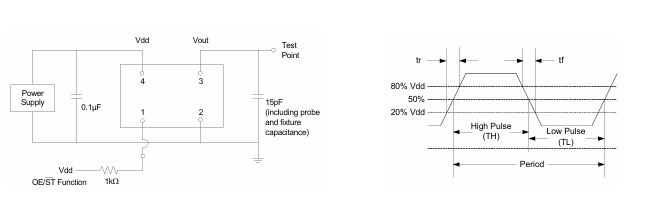

Drawing
be sure to meet your need for all kinds of components. ^_^
Product List
Supply a Series of Electronic Components, full range of semiconductors, active & passive Components.We can help you to get all for bom of the PCB,IN a word, you can get one-stop solution here,
The offers including:
Integrated Circuit, Memory ICs, Diode, Transistor , Capacitor, Resistor, Varistor, Fuse, Trimmer & Potentiometer, Transformer, Battery, Cable, Relay, Switch, Connector, Terminal Block, Crystal & Oscillator, Inductor, Sensor, Transformer, IGBT Driver, LED,LCD, Convertor, PCB (Printed Circuit Board),PCBA (PCB Assembly)
Strong in Brand:
Microchip, MAX, AD, TI, ATMEL, ST, ON, NS, Intersil, Winbond, Vishay, ISSI, Infineon, NEC, FAIRCHILD, OMRON,YAGEO, TDK, etc
![]() |
SIT8002AC-13-33E-50.00000T 50MHz MEMS Oscillator ±50ppm Stability 1.8-3.3V Supply 2.5mA Low Power LVPECL Output -40°C to +85°C AEC-Q100 Qualified Images |
