Brand Name : Texas Instruments
Model Number : LM2676SX-5.0
Certification : CE, GCF, ROHS
Place of Origin : China
MOQ : 1
Price : Negotiable
Payment Terms : T/T, Western Union,
Supply Ability : 1000pcs per month
Delivery Time : 3-5 working days after received the payment
Packaging Details : Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Function : Step-Up, Step-Down
Output Configuration : Positive or Negative
Topology : Buck, Boost
Output Type : Adjustable
Number of Outputs : 1
LM2676SX-5.0
Features
• New product available:– LMR51430 4.5 to 36-V, 3-A, 500-kHz and 1.1 MHz synchronous converter
• For faster time to market:– TLVM13630 3 to 36-V, 3-A, 200-kHz to 2.2-MHz power module
• Efficiency up to 94%
• Simple and easy to design with (using off-the-shelf external components)
• 150-mΩ DMOS output switch
• 3.3-V, 5-V, 12-V fixed output and adjustable (1.2 V to 37 V) versions
• 50-µA standby current when switched OFF
• ±2% maximum output tolerance over full line and load conditions
• Wide input voltage range: 8 V to 40 V
• 260-kHz fixed frequency internal oscillator
•–40 to 125°C operating junction temperature range
Applications
• Communication module
• Electricity meter
• Calling button operating panel
• Motor drives
Description
The LM2676 series of regulators are monolithic integrated circuits which provide all of the active functions for a step-down (buck) switching regulator capable of driving up to 3-A loads with excellent line and load regulation characteristics. High efficiency (> 90%) is obtained through the use of a low ON resistance DMOS power switch. The series consists of fixed output voltages of 3.3 V, 5 V, and 12 V and an adjustable output version.
The SIMPLE SWITCHER® power converter concept provides for a complete design using a minimum number of external components. A high fixed frequency oscillator (260 kHz) allows the use of physically smaller sized components. A family of standard inductors for use with the LM2676 are available from several manufacturers to greatly simplify the design process.
The LM2676 series also has built-in thermal shutdown, current limiting, and an ON and OFF control input that can power down the regulator to a low 50‑µA quiescent current standby condition. The output voltage is ensured to a ±2% tolerance. The clock frequency is controlled to within a ±11% tolerance.
Information
Category | | |
Mfr | | |
Series | | |
Packaging | Tape & Reel (TR) Cut Tape (CT ) Digi-Reel | |
Part Status | Obsolete | |
Function | Step-Down | |
Output Configuration | Positive | |
Topology | | |
Output Type | | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 8V | |
Voltage - Input (Max) | 40V | |
Voltage - Output (Min/Fixed) | | |
Voltage - Output (Max) | - | |
Current - Output | | |
Frequency - Switching | 260kHz | |
Synchronous Rectifier | No | |
Operating Temperature | -40°C ~ 125°C (TJ) | |
Mounting Type | Surface Mount | |
Package / Case | | |
Supplier Device Package | TO-263 (DDPAK-7) | |
Base Product Number |

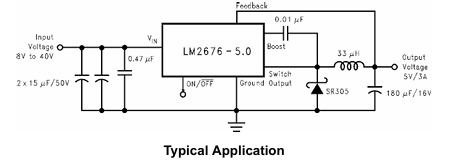

Drawing
