LM3409HVMY 75V 1.5A LED Driver 6-75V Input Analog/PWM Dimming 1MHz MSOP-10 -40°C to +125°C

TOP Electronic Industry Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

LM3409HVMY 75V 1.5A LED Driver 6-75V Input Analog/PWM Dimming 1MHz MSOP-10 -40°C to +125°C

  • 1
  • 2
  • 3

Brand Name : Texas Instruments

Model Number : LM3409HVMY

Certification : CE, GCF, ROHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union,

Supply Ability : 1000pcs per month

Delivery Time : 3-5 working days after received the payment

Packaging Details : Packed in original tray firstly ,then carton, at last Bubble bag for outer packing

Packaging Type : Reel Tray Tube Tape Bag

Operating Temperature : -40°C ~ 125°C

Package / Case : WSON-8

Mounting Type : SMD/SMT

Manufacturing Date Code : 2024+

Function : Step-Down

Contact Now

LM3409HVMY

Features

• LM3409-Q1 and LM3409HV-Q1 are Automotive Grade Products: AEC-Q100 Grade 1 Qualified

• 2-Ω, 1-A Peak MOSFET Gate Drive

• VIN Range: 6 V to 42 V (LM3409, LM3409-Q1)

• VIN Range: 6 V to 75 V (LM3409HV, LM3409HV Q1)

• Differential, High-Side Current Sense

• Cycle-by-Cycle Current Limit

• NoControl Loop Compensation Required

• 10,000:1 PWM Dimming Range

• 250:1 Analog Dimming Range

• Supports All-Ceramic Output Capacitors and Capacitor-less Outputs

• Low-Power Shutdown and Thermal Shutdown

• Thermally Enhanced 10-Pin, HVSSOP Package

Applications

• LEDDriver

• Constant Current Source

• Automotive Lighting

• General Illumination

Description

The LM3409, LM3409-Q1, LM3409HV, and LM3409HV-Q1 are P-channel MOSFET (PFET) controllers for step-down (buck) current regulators. They offer wide input voltage range, high-side differential current sense with low adjustable threshold voltage and fast output enable/disable function and a thermally enhanced 10-pin, HVSSOP package. These features combine to make the LM3409 family of devices ideal for use as constant current sources for driving LEDs where forward currents up to 5 A are easily achievable.

The LM3409 devices use constant off-time (COFT) control to regulate an accurate constant current without the need for external control loop compensation. Analog and PWM dimming are easy to implement and result in a highly linear dimming range with excellent achievable contrast ratios. Programmable UVLO, low-power shutdown, and thermal shutdown complete the feature set.

Information

Category
Manufacturer
Texas Instruments
Series
-
Packaging
Tape & Reel (TR)
Cut Tape (CT )
Digi-Reel
Part Status
Active
Type
DC DC Controller
Topology
Step-Down (Buck)
Internal Switch(s)
No
Number of Outputs
1
Voltage - Supply (Min)
6V
Voltage - Supply (Max)
75V
Voltage - Output
-
Current - Output / Channel
-
Frequency
-
Dimming
Analog, PWM
Applications
-
Operating Temperature
-40°C ~ 125°C (TJ)
Grade
Automotive
Mounting Type
Surface Mount
Package / Case
10-PowerTFSOP, 10-MSOP (0.118", 3.00mm Width)
Supplier Device Package
10-HVSSOP
Base Product Number

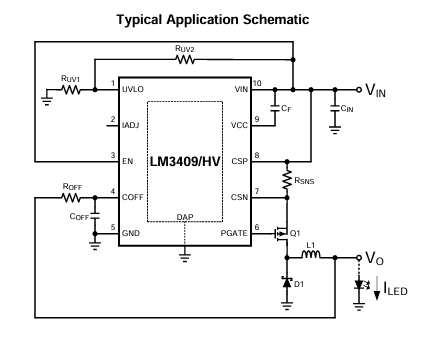

Drawing

LM3409HVMY 75V 1.5A LED Driver 6-75V Input Analog/PWM Dimming 1MHz MSOP-10 -40°C to +125°C
