FM24CL64B-GTR 64Kb FRAM I2C 1MHz 10^14 Endurance 151yr Retention NoDelay Writes 3.6V Max, SOIC-8 -40°C~85°C

TOP Electronic Industry Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

FM24CL64B-GTR 64Kb FRAM I2C 1MHz 10^14 Endurance 151yr Retention NoDelay Writes 3.6V Max, SOIC-8 -40°C~85°C

Brand Name : Cypress

Model Number : FM24CL64B-GTR

Certification : CE, GCF, ROHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union,

Supply Ability : 1000pcs per month

Delivery Time : 3-5 working days after received the payment

Packaging Details : Packed in original tray firstly ,then carton, at last Bubble bag for outer packing

Function : Step-Up, Step-Down

Output Configuration : Positive or Negative

Topology : Buck, Boost

Output Type : Adjustable

Number of Outputs : 1

Contact Now

FM24CL64B-GTR

Features

■ 64-Kbit ferroelectric random access memory (F-RAM) logically organized as 8K × 8

❐ High-endurance 100 trillion (1014) read/writes

❐ 151-year data retention (See Data Retention and Endurance on page 10)

❐ NoDelay™ writes

❐ Advanced high-reliability ferroelectric process

■ Fast 2-wire Serial interface (I2C)

❐ Up to 1-MHz frequency

❐ Direct hardware replacement for serial (I2C) EEPROM

❐ Supports legacy timings for 100 kHz and 400 kHz

■ Low power consumption

❐ 100 A (typ) active current at 100 kHz ❐ 3 A (typ) standby current

■ Voltage operation: VDD = 2.7 V to 3.65 V

■ Industrial temperature: –40 C to +85 C

■ Packages

❐ 8-pin small outline integrated circuit (SOIC) package

❐ 8-pin thin dual flat no leads (DFN) package

■ Restriction of hazardous substances (RoHS) compliant

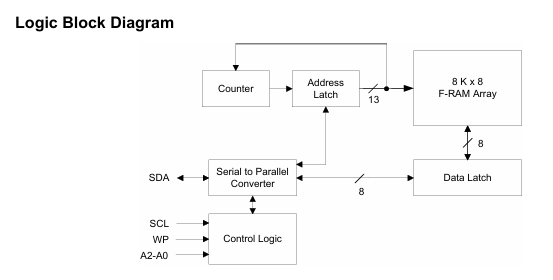

Functional Description

The FM24CL64B is a 64-Kbit nonvolatile memory employing an advanced ferroelectric process. A ferroelectric random access memory or F-RAM is nonvolatile and performs reads and writes similar to a RAM. It provides reliable data retention for 151 years while eliminating the complexities, overhead, and system-level reliability problems caused by EEPROM and other nonvolatile memories.

Unlike EEPROM, the FM24CL64B performs write operations at bus speed. No write delays are incurred. Data is written to the memory array immediately after each byte is successfully transferred to the device. The next bus cycle can commence without the need for data polling. In addition, the product offers substantial write endurance compared with other nonvolatile memories. Also, F-RAM exhibits much lower power during writes than EEPROM since write operations do not require an internally elevated power supply voltage for write circuits. The FM24CL64B is capable of supporting 1014 read/write cycles, or 100 million times more write cycles than EEPROM.

These capabilities make the FM24CL64B ideal for nonvolatile memory applications, requiring frequent or rapid writes. Examples range from data logging, where the number of write cycles may be critical, to demanding industrial controls where the long write time of EEPROM can cause data loss. The combination of features allows more frequent data writing with less overhead for the system.

Information

Category
Mfr
Series
Packaging
Tape & Reel (TR)
Cut Tape (CT )
Digi-Reel
Part Status
Active
DigiKey Programmable
Verified
Memory Type
Non-Volatile
Memory Format
Technology
FRAM (Ferroelectric RAM)
Memory Size
Memory Organization
8K x 8
Memory Interface
I2C
Clock Frequency
1 MHz
Write Cycle Time - Word, Page
-
Access Time
550 ns
Voltage - Supply
2.7V ~ 3.65V
Operating Temperature
-40°C ~ 85°C (TA)
Mounting Type
Surface Mount
Package / Case
Supplier Device Package
8-SOIC
Base Product Number

Drawing

FM24CL64B-GTR 64Kb FRAM I2C 1MHz 10^14 Endurance 151yr Retention NoDelay Writes 3.6V Max, SOIC-8 -40°C~85°C
