DAC5578SPWR
FEATURES
• Relative Accuracy: 23– DAC5578 (8 bit): 0.25LSB INL– DAC6578 (10 bit): 0.5LSB INL– DAC7578 (12 bit): 1LSB INL
• Glitch Energy: 0.15nV-s
• Power-On Reset to Zero Scale or Midscale– Devices in the TSSOP Package Reset to Zero Scale– Devices in the QFN Package Reset to Zero Scale or Midscale
• Ultra-Low Power Operation: 0.13mA/ch at 5V
• WidePower-Supply Range: +2.7V to +5.5V
• 2-Wire Serial Interface ( I2C™ compatible)
• Temperature Range:–40°C to +125°C
DESCRIPTION
The DAC5578 (8 bit), DAC6578 (10 bit), and DAC7578 (12 bit) are low-power, voltage-output, octal channel, digital-to-analog converters (DACs). The devices are monolithic, provide good linearity,and minimize undesired code-to-code transient voltages (glitch).
The devices use a versatile, 2-wire serial interface that is I2C-compatible and operates at clock rates of up to 3.4MHz. Multiple devices can share the same bus.
The devices incorporate a power-on-reset (POR) circuit that ensures the DAC output powers up to zero-scale or midscale until a valid code is written to the device. These devices also contain a power-down feature, accessed through the serial interface, that reduces the current consumption of the devices to typically 0.42μA at 5V. Power consumption is typically 2.32mW at 3V, reducing to 0.68μW in power-down mode. The low power consumption and small footprint make these devices ideal for portable, battery-operated equipment.
Information
| Category | | |
| Manufacturer | | |
| Series | | |
| Packaging | Tape & Reel (TR) Cut Tape (CT ) Digi-Reel | |
| Part Status | | |
| DigiKey Programmable | | |
| Number of Bits | | |
| Number of D/A Converters | | |
| Settling Time | | |
| Output Type | | |
| Differential Output | | |
| Data Interface | | |
| Reference Type | | |
| Voltage - Supply, Analog | | |
| Voltage - Supply, Digital | | |
| INL/DNL (LSB) | | |
| Architecture | | |
| Operating Temperature | | |
| Package / Case | 16-TSSOP (0.173", 4.40mm Width) | |
| Supplier Device Package | | |
| Mounting Type | | |
| Base Product Number | |

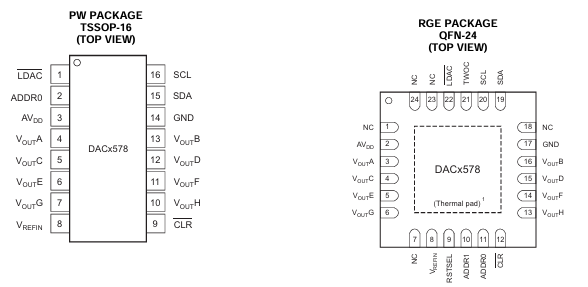

Drawing
Our advantage :
- High quality products --- our offers are 100% new and original, ROHS
- Competitive price --- good Purchase channels with good price.
- Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
- Adequate inventory --- With the support of our strong Purchasing team,
- Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.
be sure to meet your need for all kinds of components. ^_^
