IRF4905PBF -55V P-Channel MOSFET 74A Current 0.02Ω Rds(on) TO-220AB 175°C Max Avalanche Rated

TOP Electronic Industry Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

IRF4905PBF -55V P-Channel MOSFET 74A Current 0.02Ω Rds(on) TO-220AB 175°C Max Avalanche Rated

  • 1
  • 2
  • 3

Brand Name : Infineon

Model Number : IRF4905PBF

Certification : CE, GCF, ROHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union,

Supply Ability : 1000pcs per month

Delivery Time : 3-5 working days after received the payment

Packaging Details : Packed in original tray firstly ,then carton, at last Bubble bag for outer packing

Function : Step-Up, Step-Down

Output Configuration : Positive or Negative

Topology : Buck, Boost

Output Type : Adjustable

Number of Outputs : 1

Contact Now

IRF4905PBF

FEATURES

Advanced Process Technology

Ultra Low On-Resistance

Dynamic dv/dt Rating

175°C Operating Temperature

Fast Switching

P-Channel

Fully Avalanche Rated

Lead-Free

Description

Fifth Generation HEXFETs from International Rectifier utilize advanced processing techniques to achieve extremely low on-resistance per silicon area. This benefit, combined with the fast switching speed and ruggedized device design that HEXFET Power MOSFETs are well known for, provides the designer with an extremely efficient and reliable device for use in a wide variety of applications.

The TO-220 package is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 watts. The low thermal resistance and low package cost of the TO 220 contribute to its wide acceptance throughout the industry.

Information

Category
Mfr
Series
Packaging
Tube
Part Status
Active
FET Type
Technology
Drain to Source Voltage (Vdss)
55 V
Current - Continuous Drain (Id) @ 25°C
Drive Voltage (Max Rds On, Min Rds On)
10V
Rds On (Max) @ Id, Vgs
20mOhm @ 38A, 10V
Vgs(th) (Max) @ Id
4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs
180 nC @ 10 V
Vgs (Max)
±20V
Input Capacitance (Ciss) (Max) @ Vds
3400 pF @ 25 V
FET Feature
-
Power Dissipation (Max)
200W (Tc)
Operating Temperature
-55°C ~ 175°C (TJ)
Grade
-
Qualification
-
Mounting Type
Through Hole
Supplier Device Package
TO-220AB
Package / Case
Base Product Number

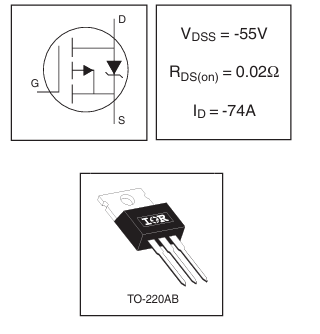

Drawing

IRF4905PBF -55V P-Channel MOSFET 74A Current 0.02Ω Rds(on) TO-220AB 175°C Max Avalanche Rated
