Brand Name : ON Semiconductor
Model Number : NCP301LSN27T1G
Certification : CE, GCF, ROHS
Place of Origin : China
MOQ : 1
Price : Negotiable
Payment Terms : T/T, Western Union,
Supply Ability : 1000pcs per month
Delivery Time : 3-5 working days after received the payment
Packaging Details : Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Packaging Type : Reel Tray Tube Tape Bag
Operating Temperature : -40°C ~ 125°C
Package / Case : WSON-8
Mounting Type : SMD/SMT
Manufacturing Date Code : 2024+
Function : Step-Down
NCP301LSN27T1G
Features
• Quiescent Current of 0.5 A Typical
• High Accuracy Undervoltage Threshold of 2.0%
• Wide Operating Voltage Range of 0.8 V to 10 V
• Complementary or Open Drain Reset Output
• Active Low or Active High Reset Output
• Specified Over the −40°C to +125°C Temperature Range (Except for Voltage Options from 0.9 to 1.1 V)
• NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
Applications
• Microprocessor Reset Controller
• Low Battery Detection
• Power Fail Indicator
• Battery Backup Detection
Information
Category | | |
Manufacturer | onsemi | |
Series | - | |
Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Part Status | Obsolete | |
DigiKey Programmable | Not Verified | |
Type | Simple Reset/Power-On Reset | |
Number of Voltages Monitored | 1 | |
Voltage - Threshold | 2.7V | |
Output | Open Drain or Open Collector | |
Reset | Active Low | |
Reset Timeout | - | |
Operating Temperature | -40°C ~ 125°C (TA) | |
Mounting Type | Surface Mount | |
Package / Case | SOT-23-5 Thin, TSOT-23-5 | |
Supplier Device Package | 5-TSOP | |
Base Product Number |

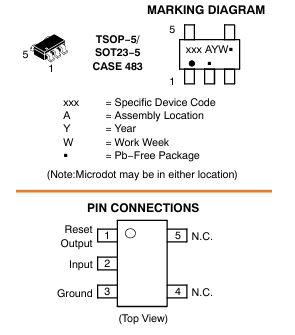

Drawing
