Brand Name : Toshiba
Model Number : TLP152
Certification : CE, GCF, ROHS
Place of Origin : China
MOQ : 1
Price : Negotiable
Payment Terms : T/T, Western Union,
Supply Ability : 1000pcs per month
Delivery Time : 3-5 working days after received the payment
Packaging Details : Packed in original tray firstly ,then carton, at last Bubble bag for outer packing
Packaging Type : Reel Tray Tube Tape Bag
Operating Temperature : -40°C ~ 125°C
Package / Case : WSON-8
Mounting Type : SMD/SMT
Manufacturing Date Code : 2024+
Function : Step-Down
Features
Buffer logic type (totem pole output)
Output peak current: ±2.5 A (max)
Operating temperature: -40 to 100
Supply current: 3.0 mA (max)
Supply voltage: 10 to 30 V
Threshold input current: 7.5 mA (max)
Propagation delay time: tpHL = 190 ns (max), tpLH = 170 ns (max)
Common-mode transient immunity: ±20 kV/µs (min)
Isolation voltage: 3750 Vrms (min)
Safety standards
UL-approved: UL1577, File No.E67349
cUL-approved: CSA Component Acceptance Service No.5A File No.E67349
VDE-approved: EN60747-5-5, EN60065 or EN60950-1 (Note 1)
: EN62368-1 (Pending) (Note 1)
CQC-approved: GB4943.1, GB8898 Thailand Factory
Applications
• Plasma Display Panels (PDPs)
• Industrial Inverters
• MOSFET Gate Drivers
• IGBT Gate Drivers
Description
The TLP152 is a photocoupler in an SO6 package that consists of a GaAℓAs infrared light-emitting diode (LED) optically coupled to an integrated high-gain, high-speed photodetector IC chip. The photodetector IC chip has an internal shield to provide a high common-mode transient immunity of ±20 kV/µs and thus superior noise immunity between the input and output pins. The TLP152 has a totem-pole output that can both sink and source current. It is suitable for directly driving a small IGBT or power MOSFET.
Information
Category | | |
Mfr | | |
Series | - | |
Packaging | Tape & Reel (TR) Cut Tape (CT) Digi-Reel® | |
Part Status | Active | |
Technology | Optical Coupling | |
Number of Channels | 1 | |
Voltage - Isolation | 3750Vrms | |
Common Mode Transient Immunity (Min) | 20kV/µs | |
Propagation Delay tpLH / tpHL (Max) | 145ns, 165ns | |
Pulse Width Distortion (Max) | 50ns | |
Rise / Fall Time (Typ) | 18ns, 22ns | |
Current - Output High, Low | 2A, 2A | |
Current - Peak Output | 2.5A | |
Voltage - Forward (Vf) (Typ) | 1.57V | |
Current - DC Forward (If) (Max) | 20 mA | |
Voltage - Output Supply | 10V ~ 30V | |
Operating Temperature | -40°C ~ 100°C | |
Mounting Type | Surface Mount | |
Package / Case | 6-SOIC (0.179", 4.55mm Width), 5 Leads | |
Supplier Device Package | 6-SO, 5 Lead | |
Approval Agency | - | |
Base Product Number |

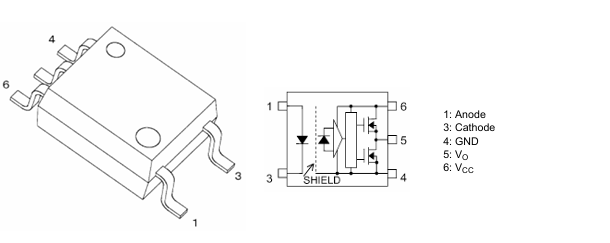

Drawing
