L7805CV-DG 5V 1.5A Linear Voltage Regulator Thermal Overload Protection Short Circuit Safe TO-220 Package Wide 7V-35V Input Range, Ideal for Power

TOP Electronic Industry Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

L7805CV-DG 5V 1.5A Linear Voltage Regulator Thermal Overload Protection Short Circuit Safe TO-220 Package Wide 7V-35V Input Range, Ideal for Power

Brand Name : STMicroelectronics

Model Number : L7805CV-DG

Certification : CE, GCF, ROHS

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : T/T, Western Union,

Supply Ability : 1000pcs per month

Delivery Time : 3-5 working days after received the payment

Packaging Details : Packed in original tray firstly ,then carton, at last Bubble bag for outer packing

Function : Step-Up, Step-Down

Output Configuration : Positive or Negative

Topology : Buck, Boost

Output Type : Adjustable

Number of Outputs : 1

Contact Now

L7805CV-DG

Features

• Output current up to 1.5 A

• Output voltages of 5; 6; 8; 8.5; 9; 12; 15; 18; 24 V

• Thermal overload protection

• Short circuit protection

• Output transition SOA protection

• 2 % output voltage tolerance (A version)

• Guaranteed in extended temperature range (A version)

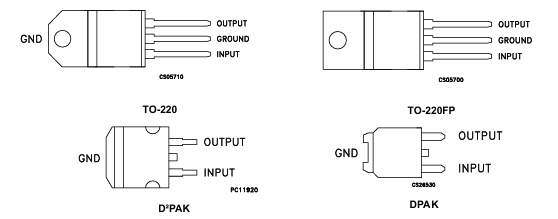

Description The L78 series of three-terminal positive regulators is available in TO-220, TO-220FP, D²PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications.

These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type embeds internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1 A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Type
Description
Select All
Category
Mfr
Series
-
Packaging
Tube
Part Status
Active
Output Configuration
Output Type
Number of Regulators
1
Voltage - Input (Max)
35V
Voltage - Output (Min/Fixed)
5V
Voltage - Output (Max)
-
Voltage Dropout (Max)
2V @ 1A (Typ)
Current - Output
Current - Quiescent (Iq)
8 mA
PSRR
62dB (120Hz)
Control Features
-
Protection Features
Over Temperature, Short Circuit
Operating Temperature
0°C ~ 125°C
Mounting Type
Through Hole
Package / Case
TO-220-3
Supplier Device Package
TO-220
Base Product Number

L7805CV-DG 5V 1.5A Linear Voltage Regulator Thermal Overload Protection Short Circuit Safe TO-220 Package Wide 7V-35V Input Range, Ideal for Power

Our advantage :

  • High quality products --- our offers are 100% new and original, ROHS
  • Competitive price --- good Purchase channels with good price.
  • Professional service --- strict quality testing before the shipment, and perfect after-sales service after the purchase.
  • Adequate inventory --- With the support of our strong Purchasing team,
  • Fast delivery --- we will ship the goods within 1-3 working days after the payment confirmed.

be sure to meet your need for all kinds of components. ^_^
